Electronic Systems
Electronic Solutions by KOSTAL
Ready for action: universal power supply unit, DC/DC converter and rotary encoder.
KOSTAL universal power supply unit
The highly efficient and decentralised KOSTAL universal power supply unit.
KOSTAL DC/DC converter
For converting voltages and currents. Typical power levels of up to 22 kW.
KOSTAL rotary encoder
The digital KOSTAL universal position sensor for roller shutters and more.
Ready for action:
Universal power supply unit
KOSTAL solutions for supplying voltages and currents with the highly efficient and decentralised universal power supply unit with a high power class and robust design.
Designed for continuous use
The decentralised power supply unit from KOSTAL enables a highly efficient power supply directly in the field thanks to a three-phase connection. With its high power class and robust design, including adequate cooling and high protective class, it is ideal for decentralised use outside the control cabinet.
Power supply in the field
The power supply unit offers flexibility by supplying electronic consumers directly at the point of use and can be operated independently to ensure optimum power distribution.
Advantages of the KOSTAL universal power supply unit:
- 960 watts + IP54: no competition in this class to date
- Power Boost 1.5 kW / 4 s
- Lockable maintenance switch
- Electronic DC line protection (parameterisable)
- Integrated chopper (load resistor to protect against overvoltages caused by power being fed back), like a brake resistor
- Output voltage adjustable by + 4 V to compensate for line losses
- Two digital outputs for status display or PLC remote maintenance
- Terminal area for second AC line, for looping through
- Separate AC and DC connection ranges, to protect against short circuits
- Various potential installation positions
- Max. operating height 2,000 m above sea level
Power supply unit fields of application:
- Energy supply in the field
- Intralogistics/warehouse technology
- Robotics
- Material handling
- Conveyor technology
- Decentralised systems and machinery
Further technical details can be found in the download area:
KOSTAL power supply unit data sheet
Ready for action:
the KOSTAL universal DC/DC converter
KOSTAL solutions for converting voltages and currents. Power typically up to 22 kW. Variants: AC/DC, DC/AC, DC/DC with grid feed-in: meets the feed-in guidelines.
Converting DC/DC voltages efficiently
The DC/DC converters from KOSTAL provide an efficient interface between batteries and fuel cells by precisely adapting different voltage levels. As they are parameterisable, KOSTAL converters ensure a high level of efficiency right from the commissioning stage.
Ready for the future
The KOSTAL DC/DC converter therefore fulfils the requirements of hydrogen technologies and self-sufficient energy supply systems in a targeted manner. The modular system is specially designed for parallel use and can be scaled up to a total output of 10 kW.
Advantages of DC/DC converters
- Scalability from 1 – 5 devices / 2.1 kW – 10.5 kW
- Compatible with all battery systems < 60 V
- Can be integrated into 19" systems
- Wide input voltage range of 10 V – 30 V
- Efficiency of up to 97.5 %
- Standardised cold plate
- Easy to integrate into customer system
- Converter topology: Boost converter
- Communicative thanks to RS-485 and CAN (optional)
- Preset standard parameters
- Simple, individual parameterisation
- Fast commissioning
- Battery reverse polarity protection and battery connection protection
- Thermal monitoring and power regulation
- Synchronised parallel operation of several converters
Potential DC/DC converter applications
- Fuel cell
- Self-sufficient energy supply
- Hydrogen applications
- Renewable energies
Further technical details can be found in the download area:
Ready for action:
the KOSTAL universal rotary encoder
Precise angle measurement: high-resolution rotary encoders for precise measurements. Integration into systems: easy integration into control and monitoring systems, with support such as automatic recording of baud rates and protocols.
Position sensors for roller shutters and more – with unrivalled precision
The rotary encoder uses a unique sliding contact technology that has proven itself in the automotive industry. The encoder records precise positions and serves as an efficient interface between the motor and the control system.
Reliable and ready for action now
The rotary encoder is available now. It enables the speed and acceleration of roller shutters to be precisely and easily calculated and controlled and reduces the amount of maintenance required compared to conventional solutions.
Advantages of the KOSTAL rotary encoder
- Position query every 3 ms
- Very high polling rate
- Performance level C (EN13849-1), device is suitable for performing a safety function (TÜV certificate)
- Analogue (new) RJ45 variant and digital version
- OEM solution possible (e.g. GfA)
- Downward compatible with the first version
- Signalling contact safety chain, for safety PLC
- Low power consumption
- Automatic baud rate detection
- Automatic protocol detection, conflict detection
- Multiple single turns possible on one bus protocol (address change)
- Magnetic field insensitive, as no Hall sensor
- Tested for 1 million cycles
- Service and product support
- Made in Germany
Rotary encoder fields of application
- Industrial doors/high-speed doors/sliding doors
- Barriers
- PV tracking
- Wind power, small wind turbines
- Railway, doors
- Automatic sliding doors, airlocks, swing gates
- Use in mechanical engineering: Machine tools, packaging machines, etc.
- Robots
- Jetties, harbours
- Theatre and stage
Further technical details can be found in the download area:
Electronic Solutions by KOSTAL
Customized Development : Discover our range of services for individual electronics development.
POWER
Customised development of power electronics
CONTROL
Customised development of single-loop and closed-loop control electronics

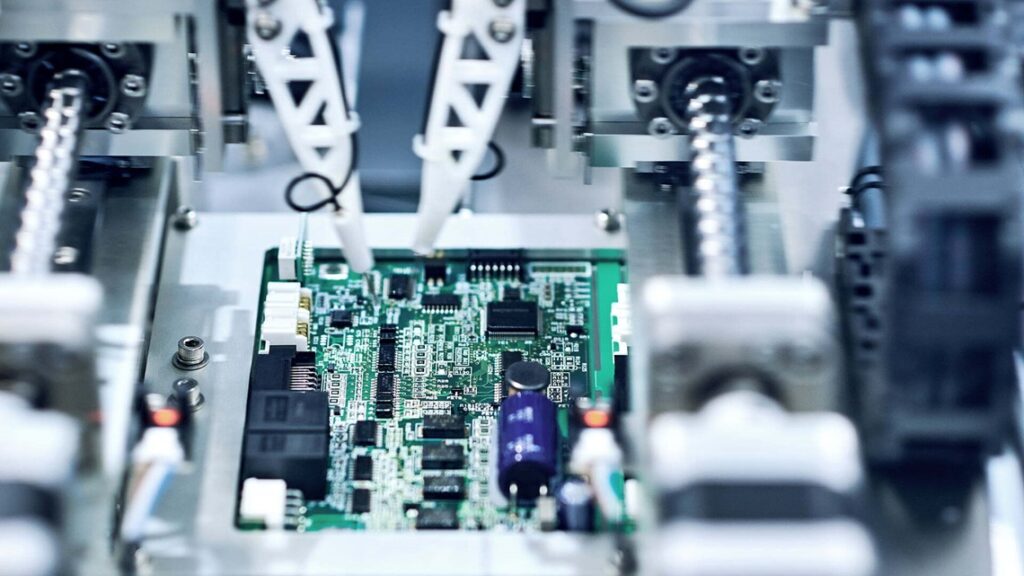

Customized power electronics
Discover KOSTAL Electronic Solutions as an E²MS and ODM full-service partner for innovative solutions in power electronics.
With recognized international expertise, KOSTAL is your experienced partner for energy conversion solutions in complex customer projects.
Regardless of whether you need AC/DC, DC/AC or DC/DC, we use our experience and expertise to develop and realize challenging volume production projects to meet your requirements.
More than E²MS
KOSTAL's modular principle: access to all products, expertise and technologies from the KOSTAL world
Automotive expertise: market leadership in electronics and mechatronics products
Largest supplier of power electronics (on-board chargers)
Complete product: electronics, housing and software
Everything from one supplier
Development of customized solutions for large quantities as a complete package from the enquiry to the finished product:
Material procurement
Development
Validation (environmental tests, EMC, EOL, ICT, etc.) Certifications (UL, IEC, CE, etc.)
Production and logistics
Closed-loop Control Electronics
We develop and implement single-loop and closed-loop control electronics in large quantities
See for yourself how great KOSTAL Electronic Solutions is as an E²MS and ODM full-service partner for innovative solutions in high-volume single-loop and closed-loop control electronics.
With internationally recognized expertise, KOSTAL is your experienced partner for solutions in single-loop and closed-loop control electronics for high-volume customer projects.
More than E²MS
KOSTAL's modular principle: access to all products, expertise and technologies from the KOSTAL world
Automotive expertise: market leadership in electronics and mechatronics products
Largest supplier of power electronics (on-board chargers)
Complete product: electronics, housing and software
Everything from one supplier
Development of customised solutions for large quantities as a complete package from the enquiry to the finished product:
Material procurement
Development
Validation (environmental tests, EMC, EOL, ICT, etc.) Certifications (UL, IEC, CE, etc.)
Production and logistics
KOSTAL Group
As a 100-year-old family-owned company, KOSTAL combines tradition with progress. Shared values and loyalty form the basis for developing and producing high-quality electronic solutions in automotive and industrial applications. Today, KOSTAL employs over 18,500 people at 46 locations in 20 countries across five continents.
